Vuzix M4000


SKU: VUZ80002 Category:
Vuzix M4000

The Vuzix M4000 is a powerful, business and smart pair of glasses. The M4000 features the revolutionary waveguide optics and is ergonomically designed with a weight of only 95 grams for long wearing comfort.

Key Benefits
  • Lightweight design for portable comfort
  • Ultra-bright display with a large 28-degree field of view
  • 12.8 MP camera and 4K video streaming
  • Rugged to water and dust, drop tested at 2 meters
  • Powerful use time of 2-12 hours


Vuzix M4000


The Vuzix M4000 is the benchmark for the Smart Glasses industry. Ergonomically designed for all-day wear, these smart glasses pack in a rugged and functional design that can handle any work environment. The M4000 has plenty of flexible options such as native voice processing, motion tracking, head tracking, and more.


The Vuzix M4000 generation delivers more processing power with the move to the Qualcomm SXR1 platform with 8 cores and more RAM storage. With the Qualcomm Snapdragon XR1 processor built specifically for smart glasses and AR applications, Vuzix Smart Glasses deliver the highest level of performance in the industry. The mechanical design of the M4000 is rugged and waterproof for wider applications such as harsh environments where safety and durability are most needed.


The screen of the M4000 has been upgraded to a waveguide-based lens with DLP projection with increased resolution to WVGA (854×480). The powerful camera features a 12.8 MP autofocus camera and 4K video streaming. So the M4000 offers the best video streaming and vision picking out there!


The Vuzix M4000 glasses are equipped with “Augumented Reality”. This is a live, direct or indirect, image of reality that merges digital instructions with the Waveguide optic. These added elements often contain sensor data or additional information about the environment. Because the Waveguide is made transparent, there is minimal distraction for the eyesight. At the same time, the wireless glasses are a complete AV communication tool for remote support applications. M4000 Smart Glasses enable safe remote working while keeping attention on the job and protecting the eyes safely.


The accompanying app for Android and iOS allows easy installation and communication between the smartphone and M4000. The app benefits from monitoring for the smart glasses, access to apps and a keyboard. New apps are constantly being added to the Vuzix Appstore to improve the efficiency, accuracy and capabilities of the Vuzix M4000.

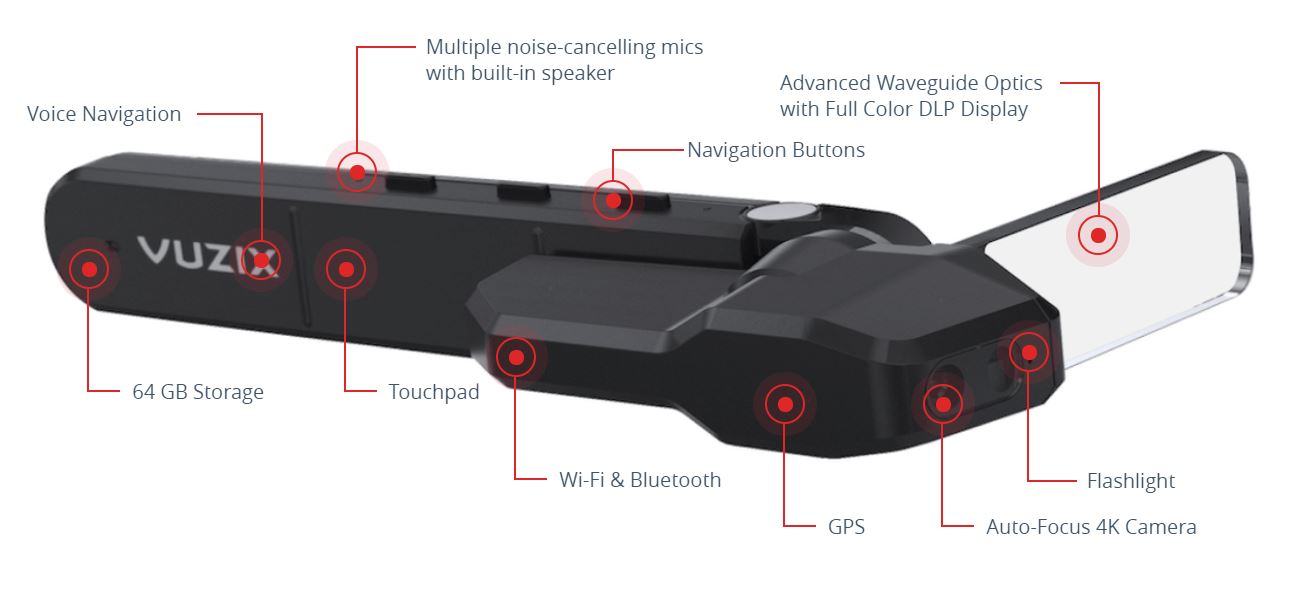

  • Weight of glasses: 95 grams
  • Waveguide-based see-through optics
  • DLP color screen
  • Camera:12.8-megapixel camera, autofocus, 4K30 video streaming
  • Microphone: Yes, triple noise canceling
  • Built-in audio: Integrated speaker (up to 97db output)
  • Controls: Control buttons, voice control and touchpad
  • Battery: Internal battery (135mAh) supports Hot Swapping of external battery
  • 3350 mAh external USB-C battery
  • Battery life: 2-12 hours
  • Connectivity: Wi-Fi, USB and Bluetooth
  • Charging via: USB-C
  • Operating System: Android
  • Processor: 8 Core 2.52Ghz Qualcomm XR1
  • ​Certifications: Drop safe up to 1 meter and IEC60601-2:2014 medical device


What’s in the boxM4000

  • Vuzix M4000 viewer with adjustable screen
  • USB-C battery
  • USB-C to USB-C power cable
  • USB-A to USB-C cable (for charging the USB-C battery)
  • M Series Lensless Frames
  • Hard case for storage
