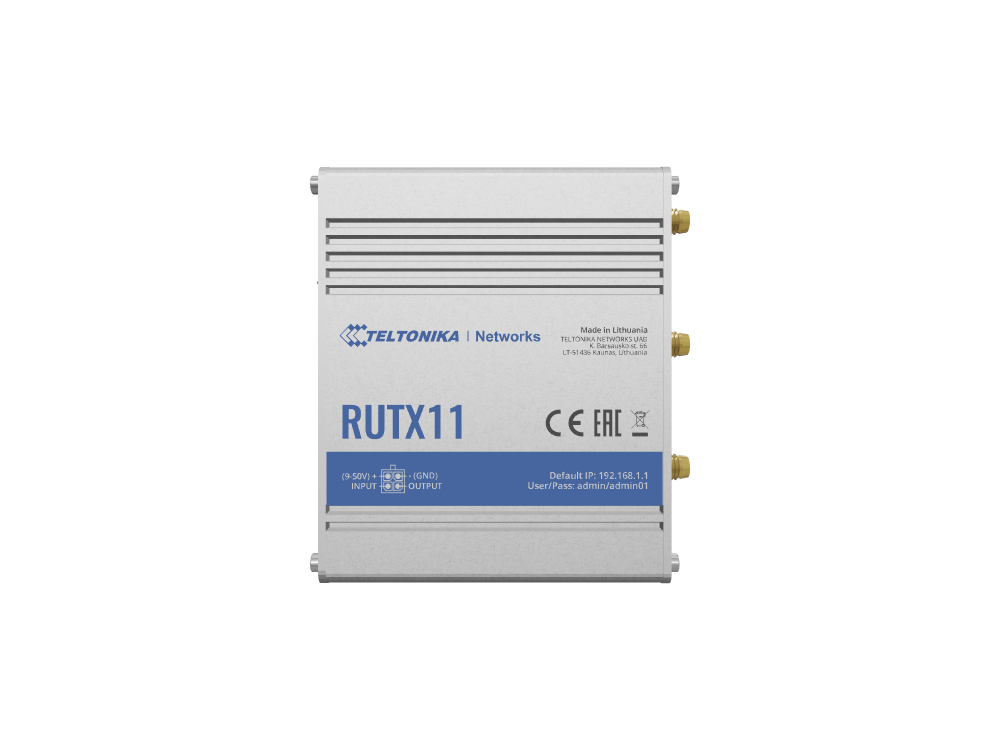

Teltonika RUTX11

Most powerful and feature rich device within Teltonika Networking products range. Equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced Industrial and Enterprise applications.

Key Benefits
  • LTE Cat 6 with speeds up to 300 Mbps
  • Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
  • Dual-SIM with auto Failover, Backup WAN and other SW features
  • Gigabit Ethernet with speeds up to 1000 Mbps
  • Teltonika Remote Management System compatible
  • RutOS – easy to use, secure and feature rich Operating System


Teltonika RUTX11

RUTX11 is the most feature rich among all the RUTX series devices. Wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. 4G (LTE) – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows seamless data transfer experience.

Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.



  • 4G LTE router
  • Download speed: up to 300 Mbps
  • Upload speed: up to 50 Mbps
  • 1x WAN (Gigabit)
  • 3x LAN (Gigabit)
  • 4G frequencies:
    LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28 / –
    LTE-TDD: B38 / B40 / B41 2 × CA: B1 + B1 / B5 / B8 / B20 / B28
  • WiFi: 802.11ac / 802.11n
  • Blue-tooth: yes (v4.2 LE)
  • 2x external antenna connections WiFi: RP-SMA
  • 2x external antenna connections 4G: SMA
  • 4 pin DC connector with 1 x digital input
  • CPU: Quad Core ARM Cortex A7 717 MHz CPU
  • Memory: 256 MBytes Flash, 256 MBytes DDR3 RAM
  • Dual SIM
  • Durable metal housing
  • Can be used with Remote Management System (RMS) and Teltonika router app
  • Dimensions: 115 mm x 95 mm x 44 mm


What’s in the Box

  • Router RUTX11
  • Power adapter
  • 2 x WiFi antennas (swivel, RP-SMA male)
  • 1 x GNSS antenna (adhesive, SMA Male)
  • 1 x Bluetooth antenna (magnetic, RP-SMA male)
  • Ethernet cable (1.5 m)
  • QSG (Quick Start Guide)


Supporting Documents

Quick Start Guide
