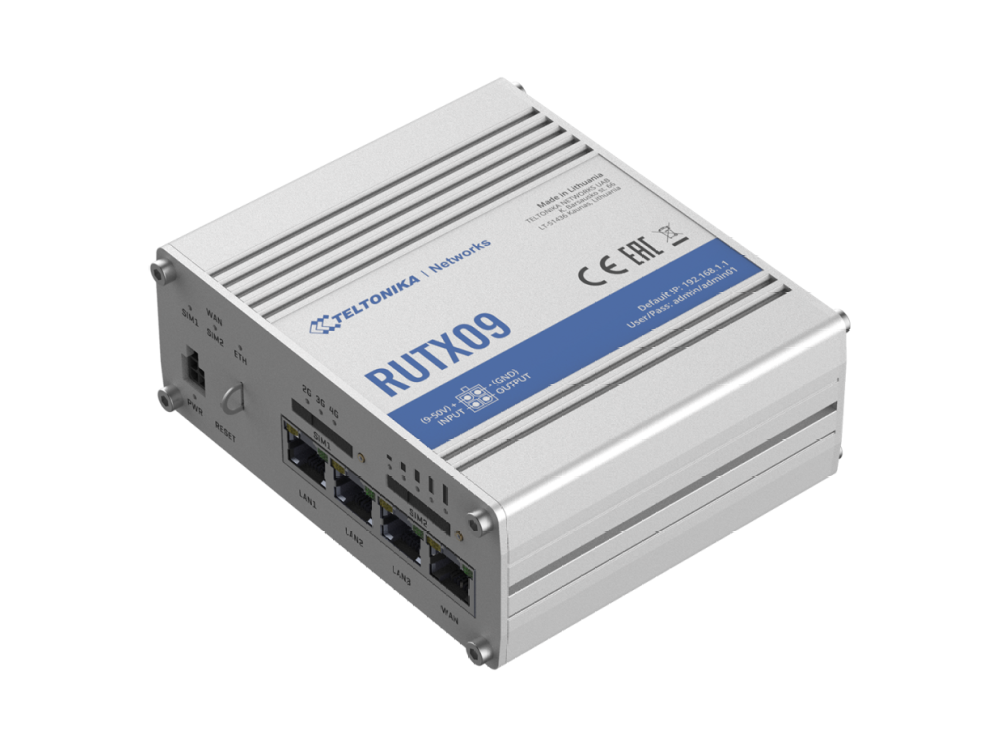

Teltonika RUTX09

259,00

SKU: TEL60046 Categories: ,
Teltonika RUTX09

Next generation LTE-A CAT6 cellular IoT router with Dual-SIM, Carrier Aggregation and Gigabit Ethernet interfaces. A rugged and powerful choice with VPN, firewall and plenty of processing power for custom applications on the OpenWrt based RutOS system.

Key Benefits
  • LTE Cat 6 with speeds up to 300 Mbps
  • Gigabit Ethernet with speeds up to 1000 Mbps
  • Dual-SIM with auto Failover, Backup WAN and other SW features
  • Teltonika Remote Management System compatible
  • Multiple secure VPN services
  • Easy to use, secure and feature rich OpenWrt based Operating System

Description

Teltonika RUTX09

This powerful LTE router is designed as a Main/Backup Internet source where steady connection and high data throughput is required. Equipped with Dual-SIM and four Gigabit Ethernet ports, RUTX09 also has all advanced RutOS software and security features.

Scenarios

This advanced router is ideal for:

  • Public transport (for example to be able to pay by pin on the bus)
  • Commercial transport (exchange information without going back to the office)
  • Emergency services (real-time information exchange for the police, ambulance, fire brigade, etc.)
  • Smart grids, smart metering (energy and cost savings)
  • Solar energy, wind energy (remote monitoring / management)
  • Oil and gas transport (remote monitoring / management)
  • Traffic systems (monitoring / managing traffic lights and other equipment)
  • Cooling and heating (monitoring systems: cost savings)
  • Lifts (monitoring / managing: preventing faults, promoting safety)



Specifications

  • 4G LTE-A router
  • Download speed: up to 300 Mbps
  • Upload speed: up to 50 Mbps
  • 4G frequencies: LTE-FDD: B1, B3, B5, B7, B8, B20, B28A, B321, LTE-TDD: B38, B40, B41
  • 3G frequencies: UMTS B1, B3, B5, B8
  • 3 x Gigabit LAN ports
  • 1 x Gigabit WAN port (can also be configured as a LAN port)
  • 2 external antennas for 4G LTE-A (SMA-female)
  • 1 antenna connection for GPS (antenna not included)
  • 1 x 4 pin DC
  • CPU: Quad Core ARM Cortex A7 717 MHz
  • Memory: 256 MBytes Flash, 256 MBytes DDR3 RAM
  • GPS
  • Durable metal housing
  • Can be used with Remote Management System (RMS) and Teltonika router app
  • Dimensions: 115 mm x 95 mm x 44 mm
  • Weight: 430 grams



What’s in the Box

  • Router RUTX09
  • Power adapter
  • 2 x LTE antennas (swivel, SMA male)
  • 1 x GNSS antenna
  • Ethernet cable (1.5 m)
  • QSG (Quick Start Guide)



Supporting Documents

Datasheet

Quick Start Guide

Flyer
