i.safe MOBILE IS530.1


SKU: ISM80033 Categories: ,
i.safe MOBILE IS530.1
Always a step ahead! The smart and innovative Zone 1/Cl I Div1-smartphone with the most advanced technology: First Bluetooth 5.0 industrial smartphone with multifunctional ISM interface, a huge internal memory 64 GB and the highest camera resolution of its class.
Key Benefits
  • 4,5“ Gorilla Glass
  • 3600 mAh Battery, replaceable
  • GPS, A-GPS, Glonass, Beidou, Galileo
  • Usable with gloves


i.safe MOBILE IS530.1

Smartphone Zone 1/21

The high-performance industrial smartphone can be used in a variety of ways thanks to the ISM interface. Additional modules such as an RSM, PTT headsets or the professional IS-TH1 barcode scanner make the IS530.1 a high-performance multifunctional device. The smartphone is Android Enterprise Recommended, zero-touch capable and MDM compatible.


Universal, 13-pin ISM (multifunctional) interface for connecting additional devices for a wide range of applications
Android Enterprise Recommended
Zero-touch capable
MDM compatible


Multifunctional, lateral ISM interface for a quick and safe connection of additional devices
SOS key for loneworker protection
LWP ready (third party application required, based on country specific regulations)
Push-To-Talk key: PTT ready (third party application required, based on country specific approvals)
Amplified loudspeaker
Sensors: Accelerometer, gyroscope, light, magnetic, proximity, pressure sensors
SIM cart: Dual micro-SIM
Type: C USB, magnetic charger port, Desktop Charger, Multi Charger



  • Operating system: Android 10
  • Processor: Qualcomm Snapdragon SDM660 Octa Core
  • Memory: 4 GB RAM | 64 GB internal memory | microSD to 128 GB
  • Dimensions Size: 155 x 80 x 25 mm
  • Weight: 325 g
  • Display: 4,5″ Gorilla Glass V3 | usable with gloves
  • Battery: 3600 mAh, 3,8 V replaceable
  • Camera: 13 MP AF rear | 5 MP FF front
  • Types of protection: IP68 dust-/waterproof | MIL-STD 810G | Usable from -20 °C to 60 °C
  • Frequencies:
    • 2G GSM 850/900/1800/1900 MHz
    • 3G WCDMA B1/2/4/5/8
    • 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66
    • 4G LTE-TDD: B38/B39/B40/B41
    • 4G LTE-TD: B34/B38
  • Connectivity:
    • WiFi 2.4 GHz + WiFi 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot
    • Bluetooth 5
    • GPS, A-GPS, Glonass, Beidou, Galileo
    • Near Field Communication


What’s in the Box

  • Smartphone
  • Battery
  • i.safe PROTECTOR 2.0 + 3.0
  • Adapter universal
  • Screwdriver
  • Display Protection Foil +  cleaning cloth
  • Safety Instructions
  • Quick Start Manual


Supporting Documents

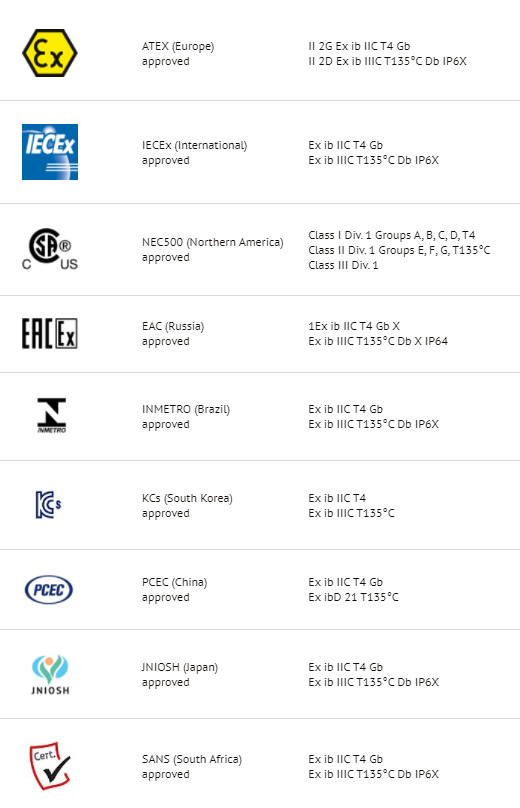

Approvals IS530.1
