Description
COMING SOON

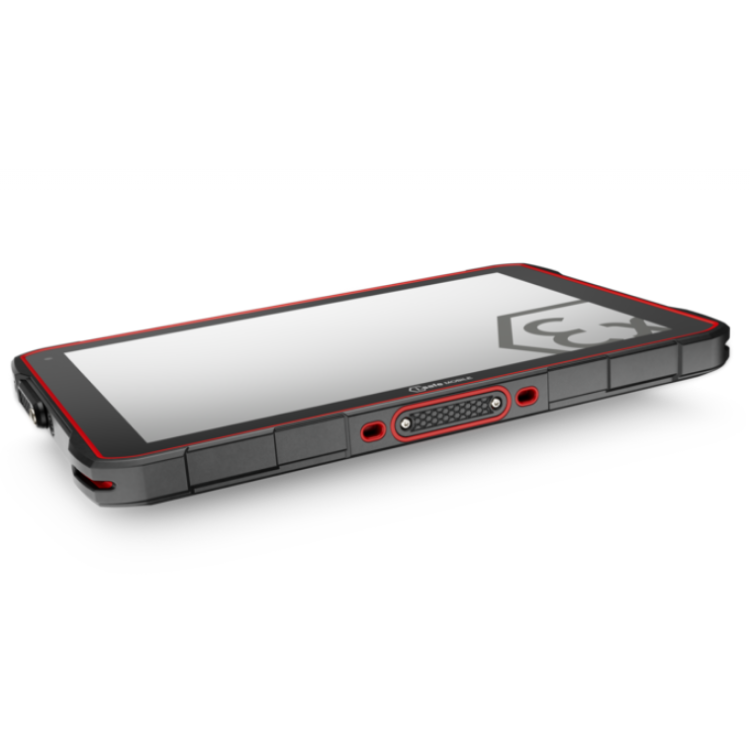

i.Safe MOBILE IS940.1
The IS940.1 is a revolutionary 10.1-inch 5G Android tablet designed specifically for data traffic in logistics, process industry and automation. Suitable for use in Ex-Zone 1/21, this tablet offers a major step forward in communication and integration within hazardous environments. Compatibility with 4G/5G campus networks and Wi-Fi 6 allows the device to operate seamlessly. Equipped with a powerful, IIoT-optimized chipset from Qualcomm® Technologies, Inc. the IS940.1 is both robust and extremely user-friendly. Further features include a 16-pin ISM interface, support for Wi-Fi 6, Bluetooth 5.2, and NFC, a long-life replaceable battery, freely programmable buttons, and cameras on both the front and back.
Key Benefits
- Advanced Operating System: Runs on Android™ for an intuitive user experience.
- Powerful Performance: Features the high-performance Qualcomm® QCM6490 Octa Core chipset.
- Spacious Storage: 8 GB RAM and 128 GB internal memory, expandable with microSD.
- Multipurpose Connectivity: Supports 4G and 5G frequencies, along with Wi-Fi®, Bluetooth®, NFC, GPS, and more.
- Clear Display: Bright 10.1” screen protected by third-generation Corning® Gorilla® Glass.
- Long Battery Life: Features a replaceable, powerful battery.
- Safety and Durability: IP68 water/dust resistance and MIL-STD-810H certification, suitable for use from -20 °C to +55 °C.
- ATEX and IECEx Approvals: Meets stringent standards for use in explosive environments.
Powerful Performance
The IS940.1 marks a major advance in safe mobile communications in potentially explosive industrial environments. With its rugged design, advanced technology and extensive functionality, this tablet is ideal for predictive maintenance management and other critical applications in the process industry.
Specifications
- Operating system: Android
- Processor: Qualcomm® QCM6490 Octa Core
- Memory: 8 GB RAM | 128 GB internal memory | microSD memory up to 128 GB
- Supported Frequenciebands:
- 4G LTE-FDD: B1/2/3/4/5/7/8/12 with MFBI/13/14/17/20/25/26/28A/28B/29/30/66/68/71
- 4G LTE-TDD: B38/39/40/41/42/43/48
- 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
- Display: 10,1“ Corning® Gorilla® Glass 3rd generation
- Battery: Replaceable
- Camera: Rear/Front
- SIM support: Dual SIM
- Connections:
- Wi-Fi®
- Bluetooth®
- GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
- Near Field Communication (NFC)
- Ports in/out: 16-pin ISM interface | USB-C
- Sensors: Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
- Types of protection: IP68 dust-/waterproof | MIL-STD-810H | usable from -20 °C to +55 °C
Approvals
ATEX (Europe) applied for:
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
IECEx (International) applied for:
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
NEC500 (North America) applied for:
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135°C
Class III Div. 1
What’s in the Box
- Tablet IS940.1
- Battery
- i.safe PROTECTOR 2.0
- Power Adapter universal
- Display Protection Foil
- Screwdriver
- Quick Start Manual
- Safety Instructions
