Ecom Tab-Ex 02 DZ1 WiFi


SKU: ECO50098 Categories: ,

This product is available to order

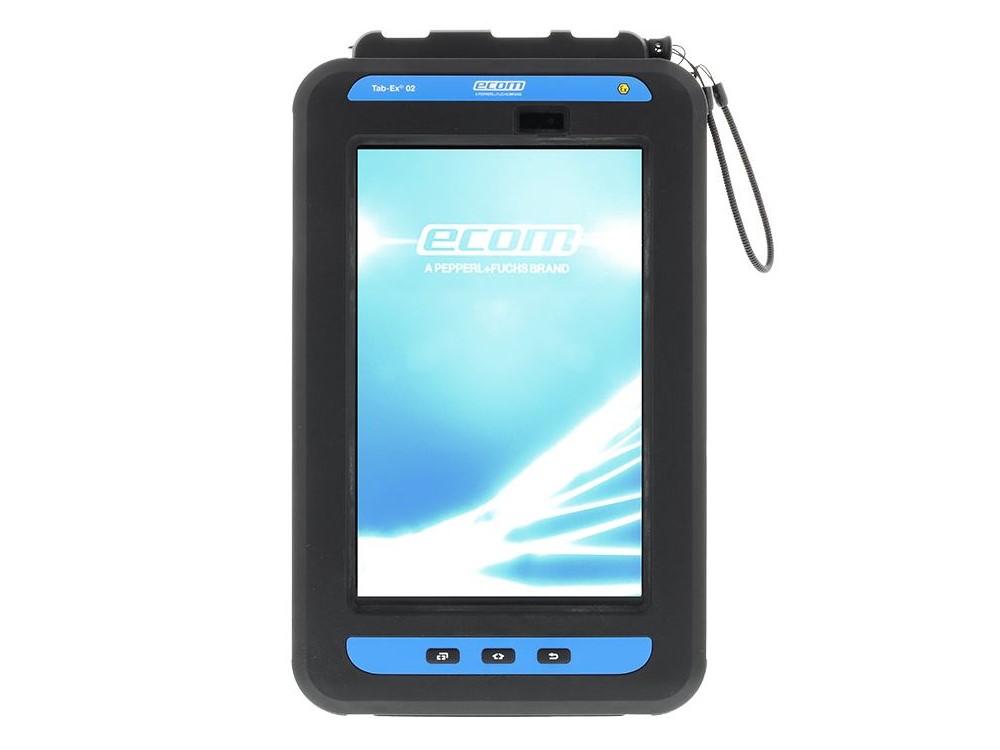

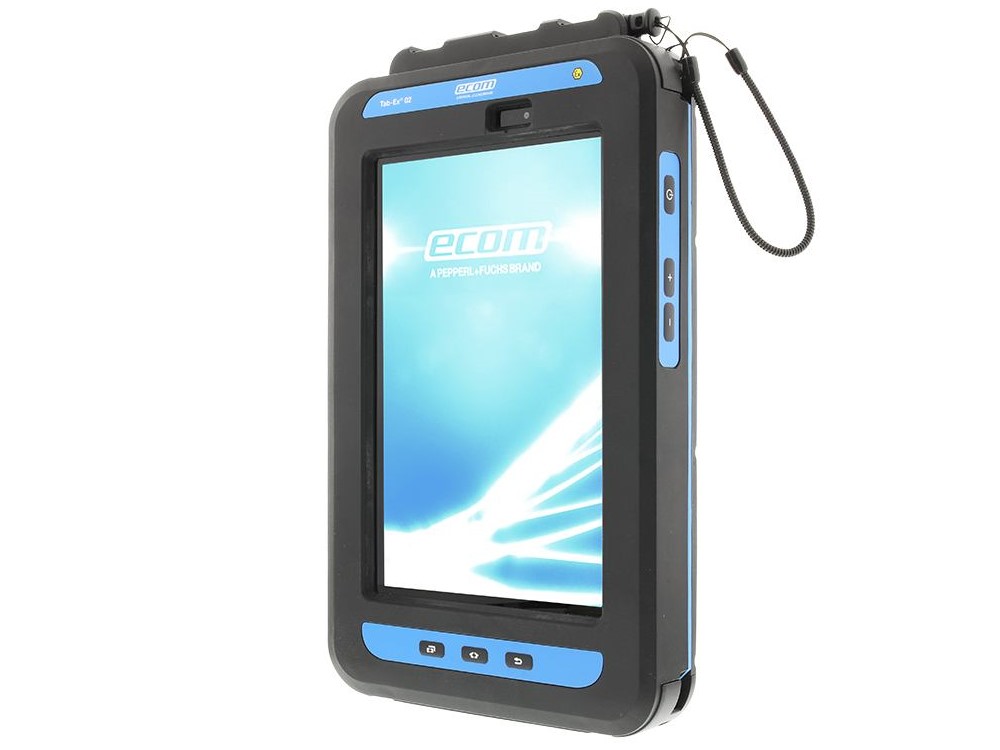

Ecom Tab-Ex 02 DZ1 WiFi

This variant of the ecom Tab-Ex 02 DZ1 is an ATEX zone 1/21 certified WiFi only tablet with camera. The Tab-Ex 02 is ideal for mobile workers in the oil and gas sector, refineries, chemical and pharmaceutical industries and other sectors where there is a risk of explosion.

Key Benefits
  • Rugged design
  • Sensor/gyroscope (magnetic compass)
  • Samsung Knox: Reliable enterprise mobile data security
  • High-quality 8 MP/5 MP camera with autofocus function / optional: Non-Camera
  • Flexible: A larger number of more complex applications can be integrated
  • Future-proof: Fulfills the requirements of future, more elaborate applications
  • Time-saving: High computing power for faster data processing


Ecom Tab-Ex 02 DZ1 WiFi

ATEX tablet based on Samsung Galaxy Tab Active 2

The Ecom Tab-Ex 02 DZ1 is based on Samsung’s advanced Galaxy Tab Active 2. You benefit from the know-how of this leading manufacturer and experience a new level of customer-oriented solutions and ease of use.

Robust tablet with Samsung Knox: your business data in safe hands

This rugged tablet features Samsung Knox, offering businesses unsurpassed security for their mobile data. Unlike standard industrial tablets, the security of the Tab-Ex 02 is not only ensured by software, but also anchored in the hardware itself. The Samsung Knox platform is built into tablets during production and consists of overlapping defense and security mechanisms to protect against malicious threats, malware and intrusions.

The main features of Samsung Knox

– Reliable protection of mobile business data
– Secured via hardware and via software platform
– Easy to use
– Simple to configure and customize



  • Operating System: Android Unless otherwise specified, the product is shipped with the latest firmware release. Latest firmware release: Android 9
  • Chipset: Exynos 7 Octa, 1.6 GHz Octa-Core (Cortex-A53)
  • Memory: RAM: 3 GB, Internal data storage: 16 GB, with external MicroSD up to 256 GB
    Please note: For safety reasons, the SD card cannot be installed or replaced after delivery.
  • Display: 1280×800 pixels (WXGA), 8“, TFT, 480 nit Brightness, Operation: also with gloves / in wet conditions & snow
  • Sensors Face Recognition, NFC, Accelerometer, Proximity, Light, Gyroscope, Geomagnetic, Hall, GPS
  • Dimensions: 162.1 x 256.0 x 33.3 mm
  • Weight: approx. 1250 g
  • Connectivity:
    • Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz + 5 GHz)
    • Wi-Fi Direct
    • Bluetooth 4.2
  • Camera: 8 MP AF + 5 MP / optional: Non-Camera
  • Battery: Li-Ion battery 3.8 V / 4,450 mAh / 16.91 Wh / up to 11 hours battery life
  • Protection class: IP64 according to EN/IEC 60079-0 (ATEX/ IECEx) | IP65 according to EN/IEC 60259 (industrial standard)


What’s in the Box

  • Tab-Ex 02 incl. Battery (4450 mAh)
  • Stylus Holder
  • S Pen
  • Safety Box
  • USB Cable
  • Travel Charger (EU, UK, US)
  • Documentation


Supporting Documents


Approvals Tab-Ex 02 DZ1
