Ecom Smart -Ex 02 DZ1

1.579,20

SKU: ECO50095 Categories: ,

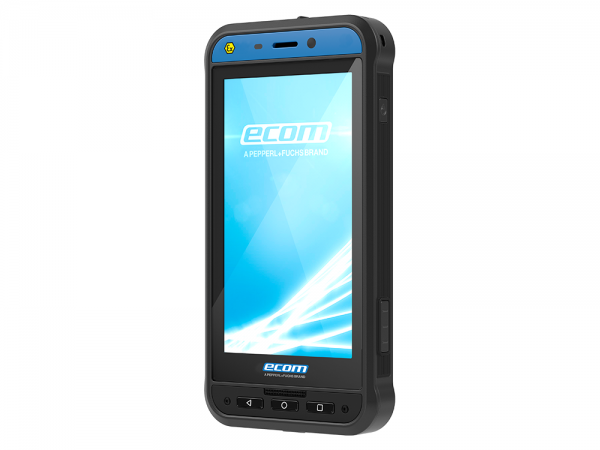

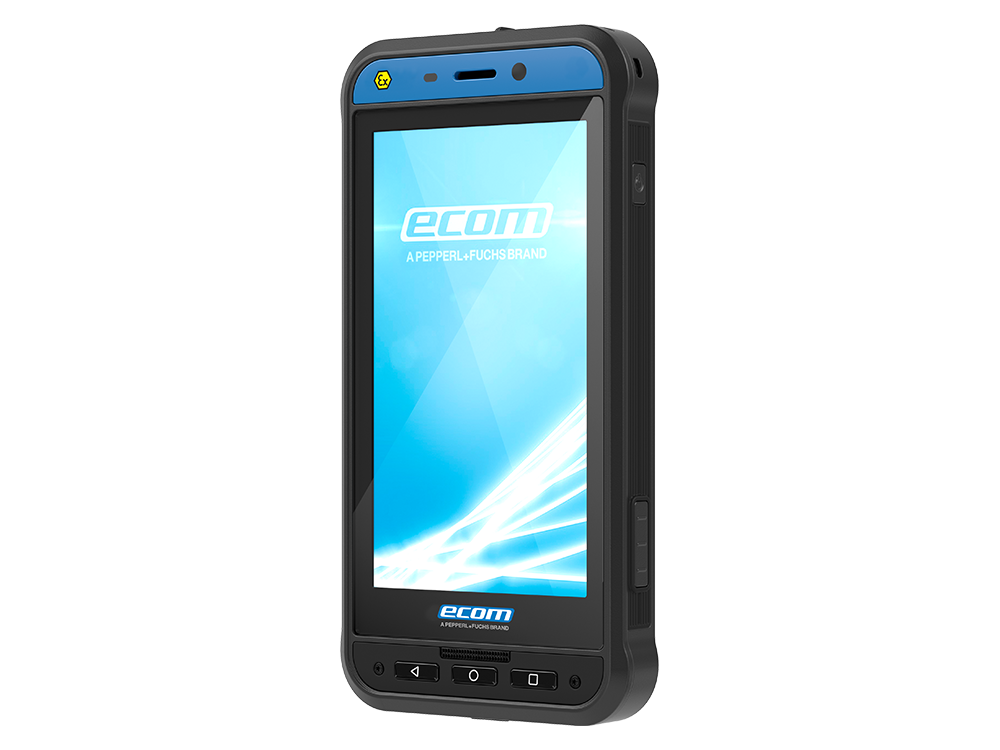

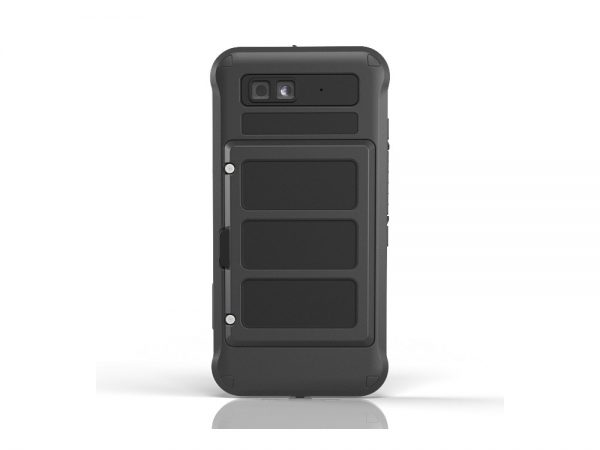

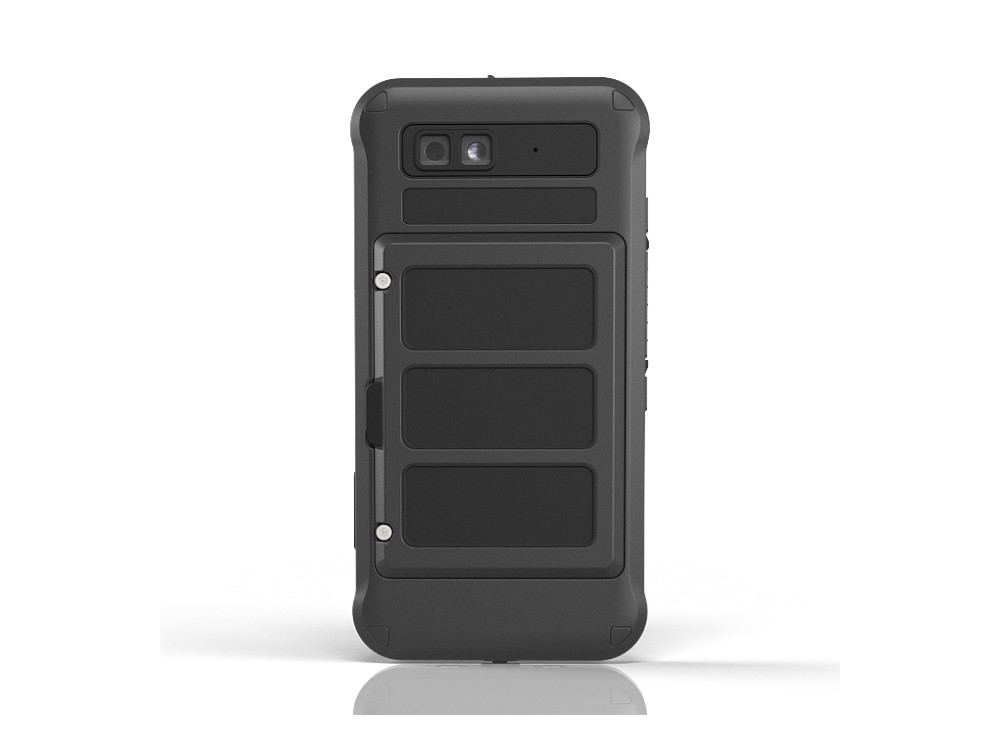

Ecom Smart -Ex 02 DZ1

The Smart-Ex 02 DZ1 is the successor of the intrinsically safe smartphone Smart-Ex 201 for Zone 1/21 and DIV 1 areas. In addition, it meets all important global hazardous location and regulatory certifications.

Key Benefits
  • Android Enterprise Recommended verified device
  • 4G / LTE standard (SIM unlocked)
  • Supports Dual-SIM
  • Supports 21 LTE bands
  • 3 GB RAM, 32 GB ROM
  • Up to 128 GB additional memory with microSD
  • WiFi Standard 802.11 a/b/g/n/ac/e/k/r/h
  • WiFi 2.4 Ghz und 5 Ghz support
  • Bluetooth 4.2 incl. BLE
  • GPS / A-GPS / Glonass / Beidou / Galileo / NFC
  • 2 cameras: 12 MP camera with autofocus and LED flash + 5 MP camera
  • Waterproof magnetic USB 2.0 connection
  • Replaceable 4400 mAh battery

Description

Ecom Smart -Ex 02 DZ1

RUGGED SMARTPHONE WITH CAMERA

Ecom Smart-Ex 02 DZ1 for Zone 1/21 and Division 1 with camera, is a secure smartphone for worldwide use in hazardous areas. The device has a 5 inch screen with high resolution, powerful functions and optimized accessories. The Smart-Ex 02 offers support for 21 LTE frequency bands, is SIM-free and can be connected to various networks worldwide. With the Android 11 operating system you can work safely, quickly and efficiently. With the powerful replaceable battery (4400 mAh), longer 24-hour shifts are possible.

FOR ANY ENVIRONMENT

The robust smartphone has a large screen with high resolution, powerful functions and optimized accessories. Its extended temperature range makes it suitable for even the most demanding environments.

WORLDWIDE USE

Designed to support 21 LTE frequency bands, the Smart-Ex 02 is SIM-locked and can be connected to various networks worldwide. With an Android 9 operating system, you can work safely, quickly and efficiently.

REPLACEABLE BATTERY

The ergonomic design and intuitive user interface enhance the user experience. The optimized accessories and peripherals ensure full compatibility with current and future Ecom products. With the most powerful replaceable battery on the market (4400 mAh), longer shifts and 24-hour distribution are possible.

UPDATES

The Smart-Ex 02 also sets new standards when it comes to security. Regular security updates prevent unauthorized access to confidential personal and company data.



Specifications

  • Operating System: Android 11 | Android Enterprise Recommended
  • Processor: Qualcomm Snapdragon 450 platform
  • Cellular frequency bands:
    • 4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B20, B21, B25, B26, B28, B66, B71
      4G LTE TDD: B38, B39, B40, B41
      3G UMTS: 850 / 900 / 1700 / 1900 / 2100 MHz
      2G GSM: 850 / 900 / 1800 / 1900 MHz
  • Memory: 3 GB RAM + 32 GB ROM | microSD card up to 128 GB

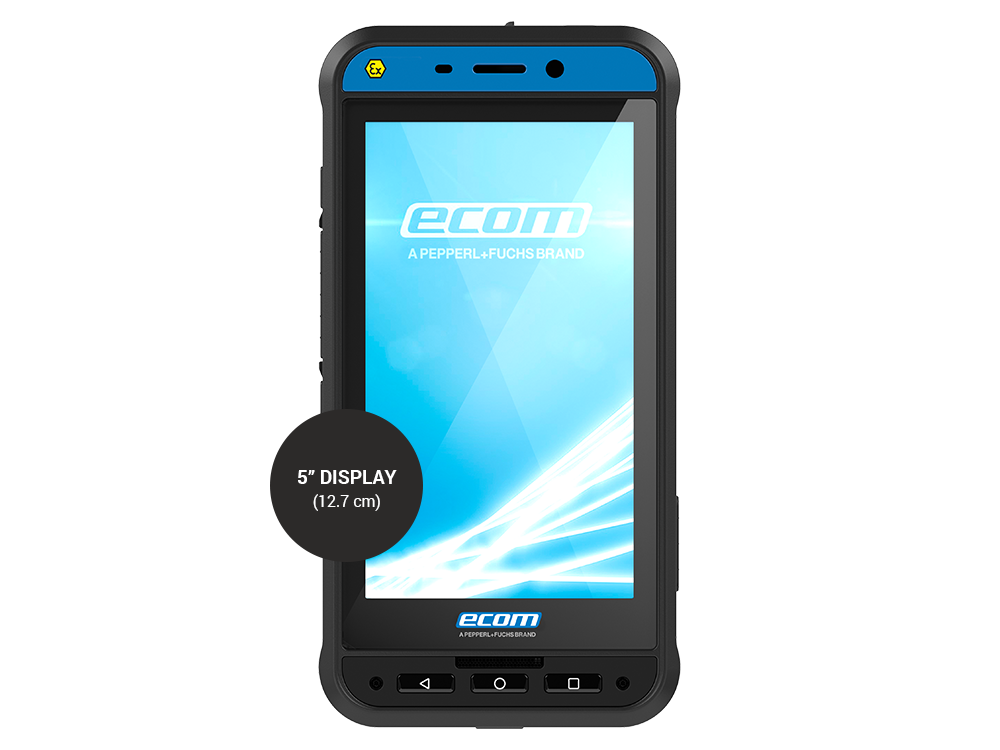

  • Display: 12.7 cm (5.0″) extreme shock and scratch resistant Gorilla Glass with glove touch and wet mode
  • Ports: 3.5 mm jack connection with special ecom mounting solution | 7-pins water-proof magnetic USB 2.0 connector
  • Dimensions: 163 x 82 x 22 mm
  • Weight: approx. 380 g
  • Connectivity:
    • 4G / LTE -standard (SIM unlocked); LTE Dual SIM; Nano SIM
    • WiFi 2.4 Ghz and 5 Ghz support
    • WiFi standards 802.11 a/b/g/n/ac/e/k/r/h
    • Bluetooth 4.2 incl. BLE (Bluetooth Low Energy)
    • GPS / A-GPS / Glonass / Beidou / Galileo
    • NFC
  • Camera: 12 MP rear with autofocus and LED flash with flashlight function / 5 MP front (optional)
  • Battery: Replaceable Li-Ion Battery pack with 3.7 V / 4400 mAh / 16.28 Wh
  • Protection class: IP68, MIL-STD-810G



What’s in the Box

  • Smart-Ex 02
  • Li-Ion battery 4400 mAh
  • Charger
  • USB cable with magnetic connection
  • Screwdriver
  • Documentation



Supporting Documents

DATASHEET
IECEX CERTIFICATE
ATEX CERTIFICATE

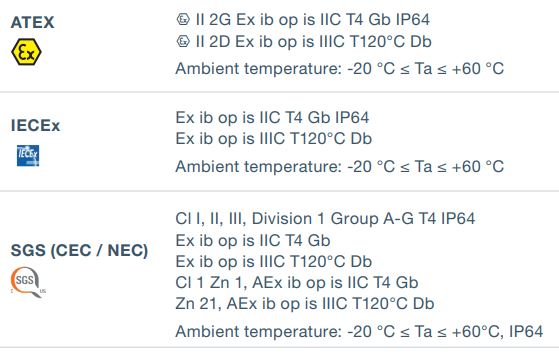

Approvals Smart-Ex 02 DZ1
