Ecom Ex-Handy 10 DZ1


SKU: ECO50092 Categories: ,

The Ecom Ex-Handy 10 with Android 9 operating system is an ideal smartphone for innovative Industry 4.0 applications in hazardous areas. The device has IP68 standards and thanks to the Gorilla Glass you can use the Ex-Handy 10 in the most rugged environments. With a 5-year product lifecycle and worldwide Ex certifications to meet all requirements, this is a great device.

Key Benefits
  • IP68 – dust- and waterproof housing + MIL-STD-810G standard
  • Worldwide approvals for Zone 1/21, Class 1 / Div 1
  • Protected in all situations: Special programmable buttons & Lone Worker Protection (LWP)
  • Always and everywhere applicable: Excellent readability of the display even in direct sunlight and a long battery life
  • The Ex-Handy 10 is full WEA 2.0 compliant and is also supporting WEA 3.0 features / functionality except advanced geo location tagging
  • Android zero-touch enabled device

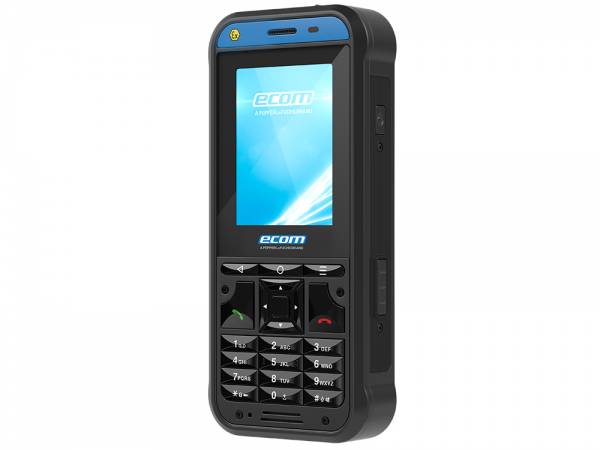

Ecom Ex-Handy 10 DZ1


The Ecom Ex-Handy 10 DZ1 is a very robust ex smartphone for zone 1 and 21. In addition to being explosion-proof, it is dust and waterproof (IP68). It can withstand falls and bumps and continues to function in demanding conditions, for example with a lot of vibrations, moisture, air pressure differences or extreme temperatures.


The Pepperl+Fuchs brand ecom introduces Ex-Handy 10 – the new generation of intrinsically safe 4G/LTE feature phones for a broad variety of applications – from pure communication to Push-to-Talk or lone worker protection.

The Ex-Handy 10 with Android operating system, is the ideal companion for innovative Industry 4.0 applications in hazardous areas. With IP68 and Gorilla Glass you can operate the Ex-Handy 10 in the roughest of environments. With a 5-year product lifecycle and global Ex-certifications to meet all requirements, it provides a low risk investment to the user.

With customer-specific configurations and customizations, it also handles the most demanding of situations.



  • Operating System: Android 9 | Android Zero-Touch | Google Play
  • Processor: Qualcomm Snapdragon MSM8909 platform
  • Cellular frequency bands:
    • 4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B20, B21, B25, B26, B28, B66, B71
    • 4G LTE TDD: B38, B39, B40, B41 (2540 Mhz to 2640 Mhz)
    • 3G UMTS: 850 / 900 / 1700 / 1900 / 2100 MHz
    • 2G GSM: 850 / 900 / 1800 / 1900 MHz
  • Memory: 2 GB RAM + 16 GB ROM | microSD card up to 128 GB
  • Display: 6,6 cm / (2,6″) capacitive multi-touch screen made of extreme shock and scratch resistant Gorilla glass with glove touch and wet mode
  • Ports: Water-proof magnetic USB 2.0 connector | 3.5 mm jack connection with special ecom mounting solution
  • Dimensions: 148 x 67 x 24 mm
  • Weight: approx. 330 g
  • Connectivity:
    • 4G / LTE -standard (SIM unlocked and free); Nano SIM
    • WiFi 802.11 a/b/g/n/e/k/r/h; 2.4 Ghz and 5 Ghz support
    • Bluetooth 4.2 incl. BLE (Bluetooth Low Energy)
    • GPS / A-GPS / Glonass / Beidou
    • NFC
  • Camera: 8 MP rear camera with auto focus (optional) and LED flash with torchlight function
  • Battery: 4400 mAh
  • Protection class: IP68, MIL-STD-810G


What’s in the Box

  • Ex-Handy 10
  • Battery 4400 mAh
  • Charger
  • USB cable with magnetic connection
  • Screwdriver
  • Documentation


Supporting Documents

IECEx Certificate
ATEX Certificate

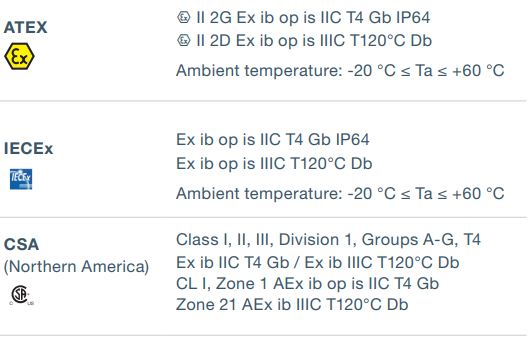

Approvals Ex-Handy 10 DZ1
